Kafka

Stream events from Apache Kafka topics to MoEngage in near real time using a Kafka consumer and the MoEngage ingestion API.

Introduction

Apache Kafka is an open-source, distributed event streaming platform used for high-performance data pipelines, streaming analytics, and mission-critical applications.

MoEngage and Kafka

This integration enables you to stream events from Kafka topics directly to MoEngage via Connected Sources. This allows raw event data to flow from Kafka to MoEngage in near real time.

With this integration, you can:

• Stream real-time events: Send events from Kafka topics to MoEngage with sub-second latency for immediate campaign triggering and user profile updates.
• Scale across environments: Deploy across multiple environments, including Systemd, Docker, Docker Compose, and Kubernetes, for production-grade reliability.

Use cases

Integrating Kafka with MoEngage supports the following use cases:

• Real-time purchase triggers: When a customer completes a purchase captured in Kafka, instantly stream the order event to MoEngage to trigger personalized thank-you emails, product review requests, and cross-sell campaigns based on items purchased and order value.
• Abandoned cart recovery: Stream cart abandonment events from your e-commerce platform through Kafka to MoEngage to automatically trigger reminder emails with personalized recommendations and time-sensitive discount codes.
• User activity tracking: Capture high-volume user interactions like page views, feature usage, and content engagement in Kafka topics. Stream them to MoEngage to build behavior profiles and trigger contextual in-app messages or push notifications.

Integration

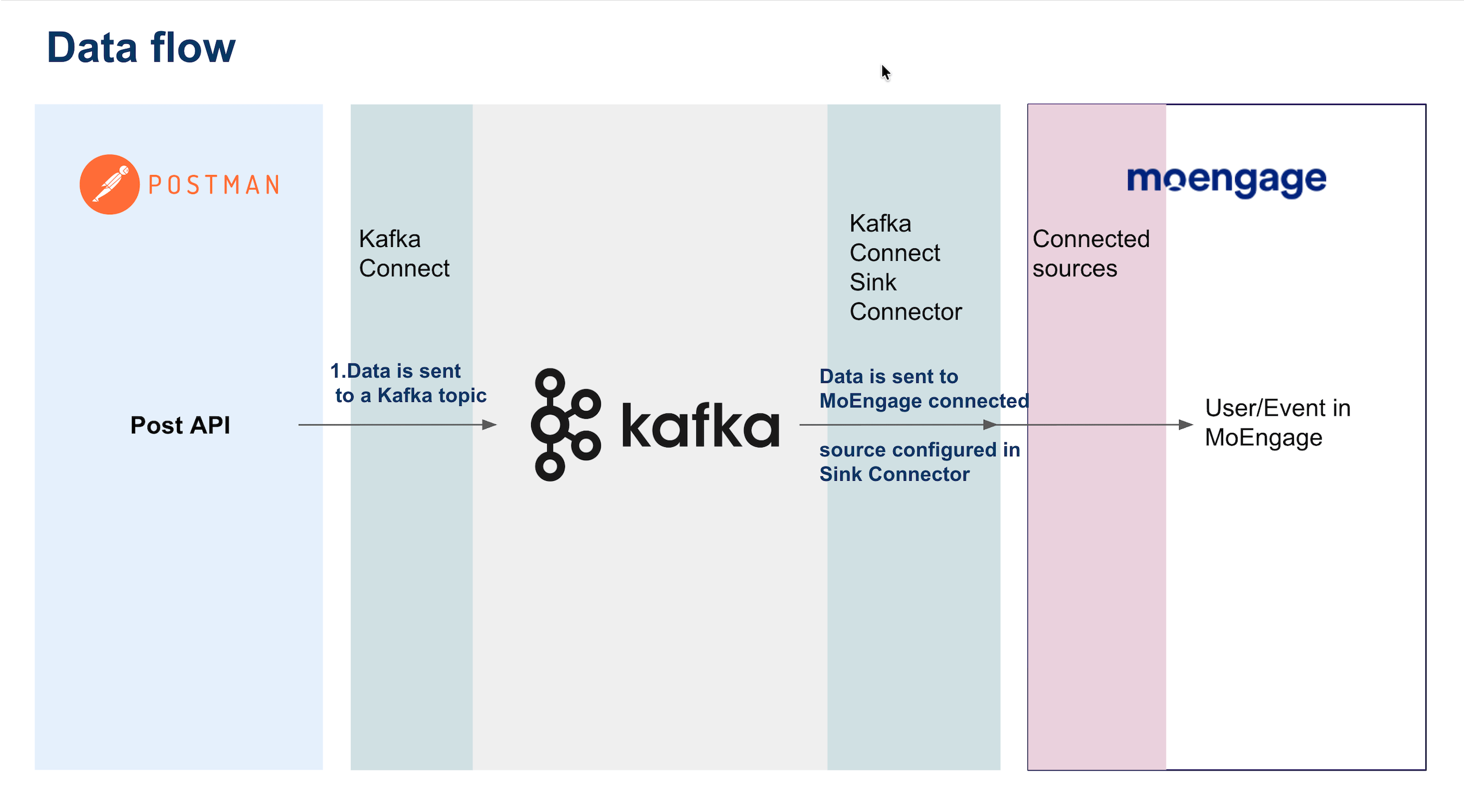

The integration follows an architecture in which your Kafka events are sent directly to MoEngage in JSON format.

You can push events from your Kafka topics to the MoEngage API endpoint by using a Kafka Consumer (a sample Python script is provided below). MoEngage processes these events and displays the data in the user profile.

Prerequisites

• An active Kafka cluster with bootstrap servers accessible from your deployment environment.
• Python 3.7 or higher is installed in your deployment environment.
• Kafka events are formatted according to the standard JSON schema.
• An understanding of your Kafka message structure and authentication requirements.

Step 1: Get the MoEngage endpoint

Contact the MoEngage Support team to obtain a dedicated Kafka integration endpoint. Note the values for the following fields for the next steps:

Field	Description	Sample value
MOENGAGE_PARTNER_NAME	Enter your MoEngage partner identifier.	—
MOENGAGE_DATA_CENTER	Enter your MoEngage Data Center number (for example, 01, 02, or 03). For more information, see Data Centers in MoEngage.	02
MOENGAGE_CONFIG_NAME	Enter the unique MOENGAGE_CONFIG_NAME provided by the MoEngage team.	15fc62d8-efbd-42c7-aad5-...
MOENGAGE_APP_ID	Your MoEngage workspace ID. To find your credentials: In the MoEngage UI, navigate to Settings > Account > APIs. Copy the ID under Workspace ID (earlier app id).	7IYSTOK1CLO9A1XDO...
MOENGAGE_API_SECRET	The MoEngage Data API secret key. To find your credentials: In the MoEngage UI, navigate to Settings > Account > APIs. Copy the value under Data under API keys.	pIfghD6guNHTvwgZz...

Step 2: Set up the Kafka connector

The following sections provide a sample script to push data from your Kafka topic to your dedicated MoEngage endpoint. You can modify the script based on your data structure and attribute mapping.

Step 2.1: Standard event format

MoEngage provides a standard JSON format for Kafka events. Ensure your Kafka messages follow this structure:

Sample Event

{
  "first_name": "Peace Smith",
  "customer_id": "6808568926651744",
  "email": "[e-mail]",
  "phone": "[phone]",
  "last_name": "Moe",
  "updated_at": "1759752209000",
  "user_attributes": {
    "city": "San Francisco",
    "subscription_tier": "Premium",
    "total_orders": 5
  },
  "event_attributes": {
    "event_name": "Purchase Completed",
    "product_id": "PROD-12345",
    "amount": 99.99,
    "currency": "USD"
  }
}

Field descriptions

Field	Type	Required	Description
customer_id	String	Yes	The unique identifier for the user (used as the primary key in MoEngage).
email	String	No	The user’s email address.
phone	String	No	The user’s phone number, including the country code (for example, [phone]).
first_name	String	No	The user’s first name.
last_name	String	No	The user’s last name.
updated_at	String	Yes	The timestamp in epoch milliseconds (for example, "1759752209000").
user_attributes	Object	No	Additional user profile attributes (for example, city, subscription_tier, and custom fields).
event_attributes	Object	Yes	Event-specific data. The event_name field is mandatory.
event_attributes.event_name	String	Yes	The name of the event (for example, Purchase Completed, Page Viewed).

Flexible schema

You can add custom fields to the user_attributes and event_attributes objects. MoEngage automatically captures and stores these fields. Only customer_id, updated_at, and event_attributes.event_name are mandatory.

Step 2.2: Basic setup

Python dependencies

Install the required Python packages for Kafka consumption and HTTPS communication:

Shell

pip install confluent-kafka requests python-dotenv
python --version

Required packages

Package	Version	Purpose
confluent-kafka	2.3.0+	The Kafka consumer client.
requests	2.31.0+	The HTTP client for the MoEngage API.
python-dotenv	1.0.0+	An environment variable management.

Configure environment

Create a .env file to securely store your configuration.

Do not commit this file to version control.

Environment Configuration

# MoEngage Configuration (from Step 1 above)
MOENGAGE_PARTNER_NAME=your_partner_name
MOENGAGE_DATA_CENTER=02
MOENGAGE_CONFIG_NAME=15fc62d8-efbd-42c7-aad5-ad723a83ae80
MOENGAGE_APP_ID=7IYSTOK1CLO9A1XDO...
MOENGAGE_API_SECRET=pIfghD6guNHTvwgZz...

# Kafka Configuration (your Kafka cluster details)
KAFKA_BOOTSTRAP_SERVERS=broker1:9092,broker2:9092
KAFKA_TOPICS=user-events,transactions
KAFKA_GROUP_ID=moengage-consumer-group
KAFKA_SECURITY_PROTOCOL=PLAINTEXT

# For authenticated Kafka (if using SASL)
KAFKA_SECURITY_PROTOCOL=SASL_SSL
KAFKA_SASL_MECHANISM=PLAIN
KAFKA_API_KEY=your_kafka_api_key
KAFKA_API_SECRET=your_kafka_api_secret

# Application Configuration
LOG_LEVEL=INFO

Kafka environment variables

Variable	Required	Description
KAFKA_BOOTSTRAP_SERVERS	Yes	A comma-separated list of Kafka broker addresses.
KAFKA_TOPICS	Yes	A comma-separated list of topics to consume.
KAFKA_GROUP_ID	Yes	The consumer group ID for offset management.
KAFKA_SECURITY_PROTOCOL	No	PLAINTEXT, SASL_SSL, or SSL (default: PLAINTEXT).
LOG_LEVEL	No	INFO, DEBUG, WARNING, or ERROR (default: INFO).

Step 2.3: Create the consumer script

Create a file named kafka_consumer.py. This script consumes messages from Kafka and posts them to the MoEngage API.

kafka_consumer.py

#!/usr/bin/env python3
"""
Kafka to MoEngage Consumer
Reads events from Kafka and sends to MoEngage using standard JSON format
"""
import os
import json
import requests
import time
import base64
from dotenv import load_dotenv
from confluent_kafka import Consumer, KafkaError

load_dotenv()

# Configuration
MOENGAGE_PARTNER_NAME = os.getenv('MOENGAGE_PARTNER_NAME')
MOENGAGE_DATA_CENTER = os.getenv('MOENGAGE_DATA_CENTER')
MOENGAGE_CONFIG_NAME = os.getenv('MOENGAGE_CONFIG_NAME')
MOENGAGE_APP_ID = os.getenv('MOENGAGE_APP_ID')
MOENGAGE_API_SECRET = os.getenv('MOENGAGE_API_SECRET')

KAFKA_BOOTSTRAP_SERVERS = os.getenv('KAFKA_BOOTSTRAP_SERVERS')
KAFKA_TOPICS = os.getenv('KAFKA_TOPICS', 'events').split(',')
KAFKA_GROUP_ID = os.getenv('KAFKA_GROUP_ID')
KAFKA_SECURITY_PROTOCOL = os.getenv('KAFKA_SECURITY_PROTOCOL', 'PLAINTEXT')
KAFKA_SASL_MECHANISM = os.getenv('KAFKA_SASL_MECHANISM', 'PLAIN')
KAFKA_API_KEY = os.getenv('KAFKA_API_KEY')
KAFKA_API_SECRET = os.getenv('KAFKA_API_SECRET')

LOG_LEVEL = os.getenv('LOG_LEVEL', 'INFO')

# MoEngage endpoint with configName
MOENGAGE_ENDPOINT = (
    f'https://api-{MOENGAGE_DATA_CENTER}.moengage.com/v1/partner/'
    f'{MOENGAGE_PARTNER_NAME}/events/?configName={MOENGAGE_CONFIG_NAME}'
)

def log(level, msg):
    """Simple logging"""
    if level in ['ERROR', 'WARNING', 'INFO', 'DEBUG']:
        print(f"[{level}] {msg}")

def create_basic_auth():
    """Create Basic Auth header"""
    credentials = f"{MOENGAGE_APP_ID}:{MOENGAGE_API_SECRET}"
    encoded = base64.b64encode(credentials.encode()).decode()
    return f"Basic {encoded}"

def send_to_moengage(kafka_message):
    """Send Kafka message to MoEngage with retries"""
    headers = {
        'Content-Type': 'application/json',
        'Authorization': create_basic_auth()
    }

    for attempt in range(3):
        try:
            response = requests.post(
                MOENGAGE_ENDPOINT,
                json=kafka_message,
                headers=headers,
                timeout=10
            )

            if response.status_code in [200, 201, 202, 204, 207]:
                log('INFO', f"Event sent successfully (status {response.status_code})")
                return True
            elif response.status_code >= 500:
                log('WARNING', f"Server error {response.status_code}, retrying...")
                time.sleep(2 ** attempt)
                continue
            else:
                log('ERROR', f"API error {response.status_code}: {response.text}")
                return False

        except Exception as e:
            log('ERROR', f"Send failed (attempt {attempt+1}): {e}")
            if attempt < 2:
                continue
            return False
    return False

# ... main consumer loop continues here (see source for full script) ...

Step 3: Test script

Before you deploy to production, verify that the integration works correctly.

Testing prerequisites

Ensure your Kafka topics contain test events in the standard JSON format before you run the consumer script.

3.1. Run the consumer script locally

Shell

python3 kafka_consumer.py

Expected console output:

Sample Logs

[INFO] Consumer started. Topics: ['user-events']
[INFO] MoEngage endpoint: https://api-02.moengage.com/v1/partner/your-company/events/?configName=15fc62d8...
[INFO] Event sent successfully (status 200)
[DEBUG] Offset committed: 12345

3.2. Verify data in the MoEngage UI

1. In the MoEngage UI, navigate to Settings > Data Management > Events.
2. Search for your event names (from event_attributes.event_name).
3. Check the Users section to confirm profiles are created/updated.
4. Navigate to Segment > Search Users.
5. Search for the customer using Customer ID, Email address, or Phone number.
6. Verify that events appear with correct attributes and timestamps in the User Profile.

Data processing delay

Events may take 1 to 2 minutes to appear in the MoEngage dashboard due to processing queues. If events don’t appear after 10 minutes, check the console logs for API errors and verify your credentials.

Step 4: Deploy to production

Choose a deployment method based on your infrastructure. MoEngage supports the following deployment options.

Systemd Service

Systemd Service (Linux)

To run the consumer as a persistent background process on a Linux server, follow the steps below to configure:

1. Create service file

Create the service file using nano:

sudo nano /etc/systemd/system/kafka-moengage.service

Add the following configuration, adjusting paths as needed:

[Unit]
Description=Kafka to MoEngage Consumer
After=network.target

[Service]
Type=simple
User=kafka_user
WorkingDirectory=/opt/kafka-moengage
EnvironmentFile=/opt/kafka-moengage/.env
ExecStart=/usr/bin/python3 /opt/kafka-moengage/kafka_consumer.py
Restart=always
RestartSec=10
StandardOutput=journal
StandardError=journal

[Install]
WantedBy=multi-user.target

2. Enable and start service

Execute the following configuration to reload the system manager configuration and activate the service:

sudo systemctl daemon-reload
sudo systemctl enable kafka-moengage.service
sudo systemctl start kafka-moengage.service

3. Monitor service

Use the following configuration to verify the operational status and health of your background process:

# Check status
sudo systemctl status kafka-moengage.service

# View logs
sudo journalctl -u kafka-moengage.service -f

# Restart service
sudo systemctl restart kafka-moengage.service

Best for: Single Linux server, simple setup

Scalability: Single instance

Docker

Docker container

To package the application for consistent behavior across environments, follow these steps to build and run a Docker container.

1. Create Dockerfile

Use the following configuration to define the environment and dependencies by creating a Dockerfile:

FROM python:3.10-slim
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
COPY kafka_consumer.py .
CMD ["python3", "kafka_consumer.py"]

2. Create requirements.txt

Add the following Python libraries to requirements.txt to ensure they are installed during the build process.

confluent-kafka==2.3.0
requests==2.31.0
python-dotenv==1.0.0

3. Build and run

Run the following to compile your image and launch a detached container instance:

# Build image
docker build -t kafka-moengage:latest .

# Run container
docker run -d \
  --name kafka-moengage \
  --env-file .env \
  --restart unless-stopped \
  kafka-moengage:latest

# View logs
docker logs -f kafka-moengage

# Stop container
docker stop kafka-moengage

Best for: Containerized environments, portable across systems

Scalability: Manual scaling by running multiple containers

Docker Compose

Docker Compose

Manage the consumer with a declarative configuration file.

1. Create docker-compose.yml

Configure with the following service parameters, including environment variables and logging limits, in a docker-compose.yml file:

version: '3.8'
services:
  kafka-moengage:
    build: .
    container_name: kafka-moengage-consumer
    env_file: .env
    restart: always
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"

2. Start and monitor

Configure with the following CLI commands to manage the lifecycle and view the real-time output of your orchestrated services:

# Start service
docker-compose up -d

# View logs
docker-compose logs -f

# Stop service
docker-compose down

# Restart service
docker-compose restart

Best for: Local development and testing, multi-service stacks

Scalability: Can scale with docker-compose up --scale kafka-moengage=3

Kubernetes

Kubernetes deployment

Deploy for production-grade high availability with automatic scaling.

1. Create secrets

Securely store your sensitive MoEngage and Kafka credentials by creating a Kubernetes Secret object with the following:

kubectl create secret generic kafka-moengage \
  --from-literal=MOENGAGE_APP_ID=your_app_id \
  --from-literal=MOENGAGE_API_SECRET=your_secret \
  --from-literal=KAFKA_API_KEY=your_kafka_key \
  --from-literal=KAFKA_API_SECRET=your_kafka_secret

2. Create deployment.yaml

Define the desired state of your application, including replica counts and resource limits, in a deployment.yaml manifest with the following:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kafka-moengage-consumer
spec:
  replicas: 2
  selector:
    matchLabels:
      app: kafka-moengage
  template:
    metadata:
      labels:
        app: kafka-moengage
    spec:
      containers:
        - name: consumer
          image: kafka-moengage:latest
          env:
            - name: MOENGAGE_PARTNER_NAME
              value: "your-partner-name"
            - name: MOENGAGE_DATA_CENTER
              value: "02"
            - name: MOENGAGE_CONFIG_NAME
              value: "your-config-uuid"
            - name: KAFKA_BOOTSTRAP_SERVERS
              value: "broker1:9092,broker2:9092"
            - name: KAFKA_TOPICS
              value: "user-events"
            - name: KAFKA_GROUP_ID
              value: "moengage-consumer-group"
            - name: MOENGAGE_APP_ID
              valueFrom:
                secretKeyRef:
                  name: kafka-moengage
                  key: MOENGAGE_APP_ID
            - name: MOENGAGE_API_SECRET
              valueFrom:
                secretKeyRef:
                  name: kafka-moengage
                  key: MOENGAGE_API_SECRET
          resources:
            requests:
              memory: "256Mi"
              cpu: "250m"
            limits:
              memory: "512Mi"
              cpu: "500m"

3. Deploy and monitor

Use the following configuration for the cluster and use these commands to track the rollout and health of your pods:

# Deploy
kubectl apply -f deployment.yaml

# View pods
kubectl get pods

# View logs
kubectl logs -f deployment/kafka-moengage-consumer

# Scale replicas
kubectl scale deployment kafka-moengage-consumer --replicas=4

Best for: Production environments, high availability, auto-scaling

Scalability: Automatic horizontal pod autoscaling

Rate Limits

To maintain platform stability, MoEngage limits ingestion of Kafka data to a maximum of 500 requests per second (RPS) per workspace. If your workspace exceeds this limit, MoEngage returns an HTTP 429 (Too Many Requests) status code.

Handle 429 responses in your consumer script by backing off and retrying, so events are not dropped when the limit is reached. The sample script already retries on server errors; extend the same logic to cover rate-limit responses.

Troubleshooting

Common issues and solutions

Issue	Possible cause	Solution
401 Unauthorized Error	The MoEngage credentials are incorrect.	Verify MOENGAGE_APP_ID and MOENGAGE_API_SECRET. Check for extra spaces in the .env file.
400 Bad Request Error	The data does not match standard JSON format.	Verify Kafka events match the required schema. Ensure customer_id, updated_at, and event_attributes.event_name are present.
Consumer not connecting to Kafka	These are incorrect bootstrap servers or authentication.	Verify KAFKA_BOOTSTRAP_SERVERS and test connectivity with telnet broker1 9092. Check SASL credentials if using authentication.
Events not appearing in MoEngage	These are missing required fields or wrong configName.	Check console logs for API response. Ensure all required fields are present. Verify MOENGAGE_CONFIG_NAME matches the credentials provided by MoEngage.
Consumer lag increasing	These processes are slower than the ingestion rate.	Scale horizontally by adding more consumer instances. Each instance will process different partitions.
JSON Decode Error	This is non-JSON data in the Kafka topic.	Verify Kafka topic contains valid JSON messages. Check for binary data or malformed JSON.
Module Not Found Error	This is a Python dependency that is not installed.	Run pip install -r requirements.txt. Verify Python version is 3.7+.

Additional resources

• Apache Kafka Documentation
• Confluent Kafka Python Client Documentation
• Docker Documentation
• Kubernetes Documentation
